Copper Nickel Silicon Chromium Alloys

BM 180 C18000

Available Formats

Chemical Composition

Copper ..................................... Balance
Nickel ..................................... 2,4 - 2,6%

Silicon .................................... 0,4 - 0,8%

Chromium ............................... 0,35 - 0,45%

Zirconium ................................ 0,2 - 0,27%

Iron Max ................................. 0,2%

Others Max .............................. 0,3%

Physical and Mechanical Properties

Tensile Strength MPa ............................. 648 - 690
Yield Strength MPa ................................ 496 - 517
Elongation 5% ....................................... 9 - 13
Electrical Conductivity IACS % ................ 44 - 48
Thermal Conductivity W/m.°K (20°C) ...... 200 - 208
Rockwell B Hardness ............................. 92 - 96
Density Kg/dm³ ..................................... 8,75

NOTE: The referred values are merely informative and vary according to the manufacturing process, geometry and dimensions.

Application

Beryllium-free Copper alloy designed to meet the strict health and safety regulations of industrialized countries regarding the use of hazardous elements.

This alloy conforms to the standards of RWMA Class 3 and is used when there is a need for good thermal and electrical conductivity, along with high mechanical properties.

It can be nitrided to achieve increased hardness with minimal loss of electrical conductivity.

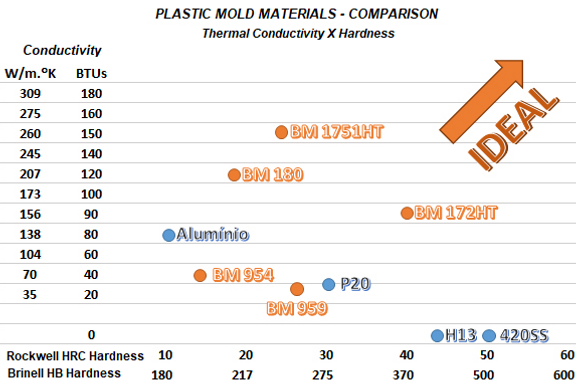

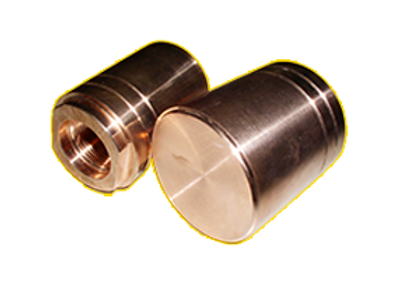

Applications include electrode holders, continuous welding discs, welding electrodes, cavities in plastic molds, high-pressure aluminum injection pistons, and soap mold cavities.

Manufacturing Process: Extrusion / Forging.
